Unveiling the Unseen: The Daring DIY X-Ray Machine and the Frontiers of Homebrew Science

[City, State] – In an era defined by readily accessible technology, the spirit of invention often pushes boundaries, sometimes venturing into domains traditionally reserved for highly specialized institutions. A recent project by a maker known as [mircemk] has captivated the online engineering community, showcasing a homemade miniature X-ray machine built from repurposed components, primarily a vacuum tube from an old television set. While a testament to ingenuity and a deep understanding of high-voltage electronics, this creation also serves as a potent reminder of the inherent risks and responsibilities that accompany such advanced DIY endeavors.

Main Facts

A Glimpse into the Extraordinary

The project, meticulously documented on Hackaday.io, details the construction of a fully functional X-ray generator capable of producing discernible radiographs of everyday household objects. [mircemk]’s achievement lies not just in assembling the components, but in mastering the complex interplay of high-voltage physics and radiation safety protocols necessary to bring such a device to life safely, albeit in a controlled home environment. The machine’s ability to reveal the internal structures of items, from electronics to organic matter, offers a captivating demonstration of scientific principles often confined to textbooks or medical facilities.

The Core Innovation: Repurposing the DY86 Vacuum Tube

At the heart of this miniature X-ray unit is a seemingly humble component: a DY86 vacuum tube, commonly found in vintage cathode ray tube (CRT) televisions. These tubes were originally designed as high-voltage rectifiers or damper diodes, handling the intense electrical potentials required to power a television screen. [mircemk]’s ingenious repurposing leverages the fundamental physics of these tubes – specifically, their ability to accelerate electrons across a vacuum – to generate X-ray radiation when subjected to incredibly high voltages. This creative adaptation exemplifies the "maker" ethos of finding new applications for existing technology, transforming a discarded part into the core of a sophisticated scientific instrument.

Unveiling the Unseen: Radiographic Success

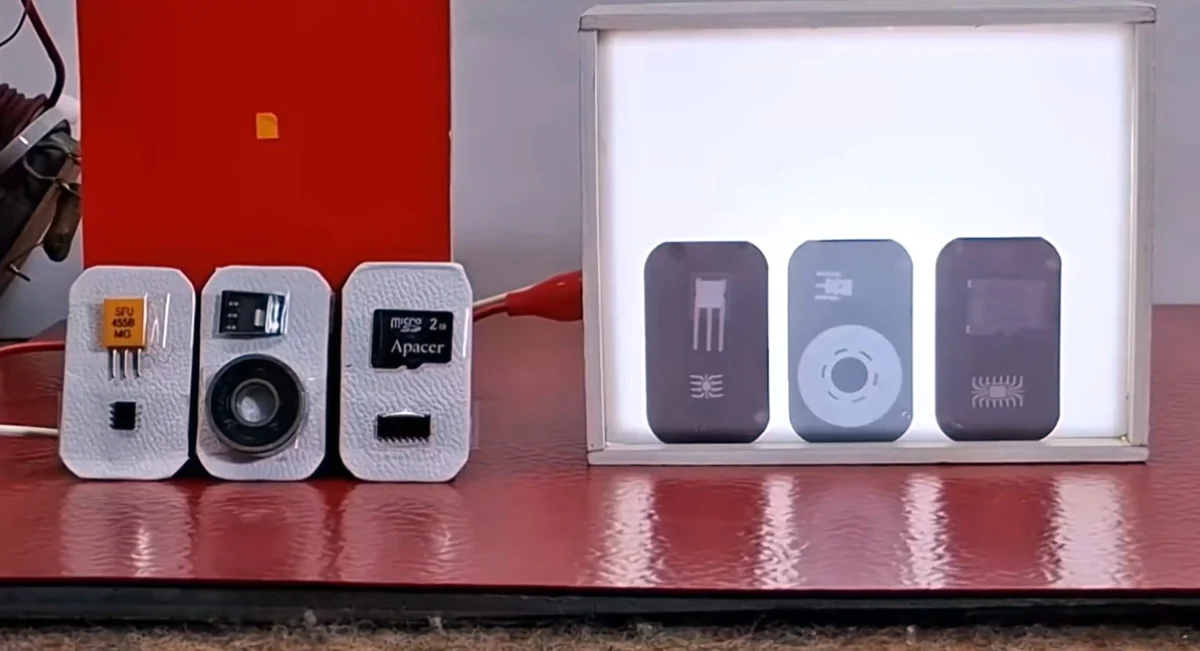

The project culminates in a series of clear, detailed X-ray photographs of various household items. These images, captured using standard dental X-ray film, showcase the machine’s capability to penetrate opaque materials and reveal their internal composition. The successful imaging of objects like electronic components and small mechanical parts demonstrates a remarkable level of control over the X-ray generation and capture process, yielding results that are both scientifically impressive and visually compelling. The ability to see inside otherwise solid objects provides a unique perspective, bridging the gap between theoretical understanding and practical application of X-ray technology.

The Double-Edged Sword of DIY: Safety Paramount

Crucially, [mircemk] explicitly addresses the paramount importance of safety in the project’s documentation. The generation of X-rays, a form of ionizing radiation, carries significant health risks, including cellular damage and increased cancer risk with prolonged or high-dose exposure. The project’s emphasis on "how to use it safely" underscores a responsible approach to a potentially hazardous undertaking. This includes careful consideration of shielding, distance, and exposure times – principles that are foundational to professional radiation safety. While the allure of such a project is undeniable, the creator’s explicit warnings serve as a vital reminder that these endeavors demand profound respect for the underlying physics and its potential dangers.

Chronology

Conception and Initial Spark: The High-Voltage Fascination

The genesis of such a project often lies in a deep-seated curiosity and a fascination with the hidden mechanisms of the physical world. For [mircemk], the inspiration likely stemmed from a desire to explore the principles of high-voltage electronics and the intriguing phenomenon of X-ray generation. The allure of making the invisible visible, combined with the challenge of harnessing extreme electrical potentials, would have provided the initial impetus. The availability of surplus components like the DY86 tube, a relic from a bygone era of electronics, likely sparked the idea of repurposing it for a new, unexpected scientific application. This initial phase would have involved extensive research into X-ray physics, vacuum tube characteristics, and high-voltage power supply design.

The Gauntlet of High Voltage: A Journey of Iteration and Resilience

Bringing the concept to fruition required navigating a complex landscape of electrical engineering challenges. The DY86 vacuum tube, while capable of emitting X-rays, demands incredibly high voltages to do so effectively – typically tens of thousands of volts. Achieving these potentials safely and reliably is no trivial task. The project’s power supply architecture is a testament to this complexity:

• Low-Voltage DC Supply: This forms the foundation, providing stable power for the subsequent stages.
• High-Voltage AC Inverter: The DC power is converted into high-frequency alternating current, a crucial step for efficient voltage transformation.
• Transformer: This component steps up the AC voltage significantly, but still not to the required extreme levels.
• Cockcroft-Walton Voltage Multiplier: This is the critical stage, a cascaded series of diodes and capacitors that progressively multiplies the voltage, reaching the hundreds of kilovolts necessary to accelerate electrons within the vacuum tube to X-ray-emitting energies.

This intricate series of power supplies did not come without its trials. [mircemk]’s documentation candidly reveals the "unfortunate demise of three vacuum tubes" during the developmental phase. These failures likely resulted from overvoltage, overcurrent, or improper operation, highlighting the delicate balance required when working with such extreme electrical forces. Furthermore, "another three [tubes] which had already lost their vacuums" points to the inherent fragility of vintage components, where the integrity of the vacuum seal is paramount for proper operation. Each failure would have necessitated meticulous troubleshooting, design adjustments, and component replacement, a process of iterative refinement common in advanced engineering projects.

The Quest for the Image: From Radiation to Radiograph

With a stable X-ray source established, the next challenge was to capture the emitted radiation as a visible image. The choice of dental X-ray photo films was a pragmatic and effective solution. These films are specifically designed for medical X-ray imaging, offering high sensitivity to X-rays and a relatively small form factor. The process involved:

• Placement: The dental film was carefully positioned behind the object to be scanned, ensuring that X-rays passing through the object would strike the film.
• Exposure: The X-ray machine was then activated, allowing the emitted radiation to expose the film. This was a critical variable, requiring experimentation to determine optimal exposure times. The documentation notes that exposure times varied significantly, from 15 minutes to an hour, depending on the material hardness and density of the object being scanned.
• Development: After exposure, the latent image on the film was brought to life through a standard photographic development process:
  • Developing: Approximately 30 seconds in a chemical developer solution, which converts the exposed silver halide crystals into visible metallic silver.
  • Washing: A brief rinse to stop the development process and remove excess chemicals.
  • Fixing: Around 30 minutes in a fixer solution, which dissolves unexposed silver halide crystals, making the image permanent and light-fast.
  • Final Washing: A thorough wash to remove all residual chemicals, preventing deterioration of the final image.

The experimentation also extended to the optimal distance between the X-ray source, object, and film. The "best results were obtained at a distance of 10-15 cm," a parameter that balances image clarity (minimizing geometric unsharpness) with practical exposure times and radiation intensity.

Triumphs and Revelations: The First Clear Radiograph

The culmination of countless hours of design, construction, and troubleshooting arrived with the production of the first clear X-ray photograph. This moment, where the previously unseen internal structure of an ordinary object became visible, would have been a significant triumph. It validated the complex engineering efforts and demonstrated the practical application of advanced physics principles. The resulting images, depicting the intricate workings of small electronics or the internal density variations of organic samples, are not merely curiosities but tangible proof of a remarkable scientific endeavor.

Supporting Data

The Science Behind the Glow: X-Ray Generation in Vacuum Tubes

X-rays are a form of electromagnetic radiation, residing on the high-energy end of the spectrum, beyond ultraviolet light. Their generation in a vacuum tube like the repurposed DY86 relies on a fundamental physical process:

1. Electron Emission: Within the vacuum tube, a filament (cathode) is heated, causing it to emit electrons (thermionic emission).
2. Electron Acceleration: A very high voltage difference is applied between the cathode and an anode (target material). This enormous electric potential accelerates the emitted electrons to extremely high velocities.
3. X-Ray Production: When these high-speed electrons collide with the anode material, their kinetic energy is rapidly converted. A small fraction of this energy is released as X-rays through two primary mechanisms:
   • Bremsstrahlung (Braking Radiation): As electrons are decelerated by the electric fields of the anode’s atomic nuclei, they emit a continuous spectrum of X-rays.
   • Characteristic Radiation: If an incoming electron has sufficient energy, it can eject an inner-shell electron from an anode atom. When an outer-shell electron drops into the vacant inner shell, it emits an X-ray photon with a specific, characteristic energy unique to the anode material.

The intensity and energy of the generated X-rays are directly proportional to the voltage applied and the current flowing through the tube, making precise power supply control critical.

Engineering Marvels: The Cockcroft-Walton Multiplier

The Cockcroft-Walton voltage multiplier circuit is an elegant and efficient way to generate extremely high DC voltages from a relatively low AC input. Developed in 1932 by John Cockcroft and Ernest Walton for their particle accelerator, which achieved the first artificial disintegration of an atomic nucleus, it consists of a ladder-like network of capacitors and diodes. Each stage rectifies and adds to the voltage of the previous stage, effectively multiplying the input voltage without requiring large, heavy transformers for the final high-voltage step. Its use in this DIY X-ray machine is particularly fitting, given its historical association with fundamental physics experiments involving high energies. The circuit’s ability to create tens or hundreds of kilovolts from a modest input is central to the X-ray tube’s operation.

The Art of Radiography: Principles of Image Formation

X-ray imaging, or radiography, relies on the differential absorption of X-rays by various materials. As X-rays pass through an object:

• Absorption: Denser materials (like metals or bone) absorb more X-rays, allowing fewer to pass through.
• Transmission: Less dense materials (like plastics, air, or soft tissue) absorb fewer X-rays, allowing more to pass through.
• Image Formation: The X-rays that successfully penetrate the object then strike the detector (in this case, dental film). Areas where more X-rays hit the film will appear darker (after development), while areas where fewer X-rays hit will appear lighter. This contrast reveals the internal structure and density variations within the object. Factors such as the X-ray energy (voltage), exposure time, and the distance from the source to the object and film all play a crucial role in the quality and clarity of the resulting radiograph.

Component Deep Dive: The DY86 Vacuum Tube

The DY86 is a specific type of high-voltage rectifier or damper diode tube. In old CRT televisions, it was responsible for rectifying the flyback transformer’s high voltage output to provide the extremely high DC voltage needed for the CRT’s anode. Its robust construction and ability to withstand high inverse voltages made it suitable for this purpose. For X-ray generation, its internal structure (a filament acting as a cathode and a plate acting as an anode within a vacuum) makes it a viable, albeit unconventional, choice. Its compact size further contributes to the "miniature" aspect of [mircemk]’s design. However, being a vintage component, its reliability and vacuum integrity can vary, as demonstrated by the project’s early failures.

Materials and Methods: Subjects of Scrutiny

The selection of household objects for X-ray scanning was likely guided by a desire to demonstrate both the penetrative power of the X-rays and the ability to differentiate between various material densities. Common choices would include:

• Small electronic components: To reveal internal wiring, circuit board traces, and component structures.
• Mechanical parts: Such as screws, springs, or small gears, to show their intricate forms.
• Organic materials: Leaves, small insects, or thin slices of fruit, to illustrate cellular structures or internal composition.
• Plastics and composites: To demonstrate varying opacities and the ability to image embedded elements.

These choices not only provided interesting visual results but also served as practical tests for optimizing exposure settings and demonstrating the machine’s capabilities across a range of material properties.

Official Responses / Expert Commentary (Contextual)

The Regulatory Landscape: Navigating Ionizing Radiation

While [mircemk]’s project is a personal endeavor, it operates in a domain typically under stringent regulatory control. In most countries, the production, use, and disposal of X-ray equipment, particularly for medical or industrial purposes, are heavily regulated by government bodies (e.g., FDA in the U.S., Health and Safety Executive in the UK, various national radiation protection agencies). These regulations cover:

• Licensing: Operators and facilities using X-ray equipment usually require specific licenses.
• Equipment Certification: X-ray machines must meet strict safety and performance standards.
• Radiation Safety Protocols: Comprehensive safety plans, including shielding, dosimetry (monitoring radiation exposure), and emergency procedures, are mandatory.
• Personnel Training: Operators must be trained in radiation safety and equipment operation.

The existence of such a DIY X-ray machine, while not subject to direct regulatory enforcement in a private, non-commercial context (unless it poses a public health risk), highlights the significant gap between hobbyist exploration and professional application. Experts in health physics and radiation safety would unequivocally advise against unauthorized construction and use of such devices due to the inherent dangers.

Ethical Considerations in DIY Science: Innovation vs. Responsibility

The DIY X-ray machine sparks important ethical discussions within the maker community and beyond. On one hand, it embodies the spirit of open science, experimentation, and the democratization of knowledge. It demonstrates that complex technologies can be understood and replicated with sufficient skill and dedication. On the other hand, it touches upon a critical ethical boundary: when does personal scientific exploration cross into realms of unacceptable public or personal risk? The creation of devices emitting ionizing radiation falls squarely into this category. The ethical imperative demands that such projects are undertaken with extreme caution, comprehensive safety knowledge, and a commitment to preventing harm. This includes robust shielding, strict control of access, and a deep understanding of the biological effects of radiation.

Expert Perspectives on Radiation Safety: The Invisible Threat

Radiation safety experts would emphasize the fundamental principles of ALARA (As Low As Reasonably Achievable), which dictates that all radiation exposure should be minimized. They would point out that X-rays are ionizing radiation, meaning they carry enough energy to strip electrons from atoms, leading to molecular damage within living cells. This damage can result in:

• Acute Radiation Syndrome: At very high doses, causing immediate severe illness.
• Stochastic Effects: At lower doses, increasing the probability of long-term effects like cancer or genetic mutations, which may not manifest until years or decades later. There is generally no "safe" threshold for ionizing radiation exposure, only acceptable levels of risk.

Therefore, experts would stress the critical importance of:

• Shielding: Using dense materials (like lead or thick steel) to absorb X-rays.
• Distance: Radiation intensity decreases rapidly with distance (inverse square law).
• Time: Minimizing exposure duration.
• Monitoring: Using Geiger counters or dosimeters to detect radiation and track exposure.
• Containment: Operating such devices in a dedicated, shielded area.

The absence of these professional-grade safeguards in a typical home environment makes DIY X-ray generation exceptionally risky.

The Role of Online Communities: Fostering Innovation While Mitigating Risk

Platforms like Hackaday.io play a crucial role in fostering innovation and sharing knowledge within the maker community. However, they also face the challenge of balancing the promotion of cutting-edge projects with ensuring safety and discouraging irresponsible replication of hazardous experiments. Many such platforms include disclaimers and community guidelines that strongly advise caution, especially for projects involving high voltages, lasers, or radiation. The documentation of projects like [mircemk]’s often includes explicit warnings, serving as a critical self-regulatory mechanism within the community to highlight the dangers and encourage responsible practices.

Implications

The Future of Accessible Science: Democratizing Technology

The DIY X-ray machine stands as a powerful symbol of the democratization of technology and science. It illustrates that with sufficient knowledge, dedication, and access to information, individuals can replicate and understand complex scientific instruments previously confined to institutional labs. This trend, often termed the "maker movement," fosters innovation, encourages hands-on learning, and challenges traditional notions of scientific research. Such projects inspire a new generation of engineers and scientists to explore, experiment, and push the boundaries of what’s possible outside conventional settings.

Educational Value and Inspiration: Learning Through Doing

Beyond its immediate technical achievement, the project offers immense educational value. It provides a tangible, real-world example of fundamental physics principles, including electromagnetism, high-voltage electronics, vacuum tube technology, and radiation physics. For students and hobbyists, understanding the construction of such a device can demystify complex concepts and provide practical insights into the challenges of engineering. It inspires curiosity, problem-solving skills, and a deeper appreciation for the intricate science behind everyday technologies, encouraging individuals to pursue careers in STEM fields.

The Shadow of Risk: A Stark Reminder of Responsibility

Despite its innovative appeal, the DIY X-ray machine casts a significant shadow of risk. The implications of improper handling or accidental exposure to ionizing radiation are severe and long-lasting. This project serves as a stark reminder that while scientific curiosity is vital, it must always be tempered with a profound understanding of potential hazards and an unwavering commitment to safety. It underscores the critical difference between controlled, professionally managed scientific experimentation and unsupervised home-based projects involving dangerous phenomena. The inherent risks dictate that such endeavors are strictly for highly experienced individuals with a comprehensive grasp of radiation physics, proper shielding, and rigorous safety protocols, and absolutely not for casual replication.

A Call for Caution and Responsible Innovation

Ultimately, [mircemk]’s DIY X-ray machine is a fascinating case study in responsible innovation. It highlights the potential for individual ingenuity to achieve remarkable feats, but simultaneously issues a strong call for caution. The project is an exemplar of how to document a high-risk endeavor by including safety warnings and detailed methodology. It implies that for such projects to be truly valuable, the education around safety must be as robust as the technical instruction. The broader implication is that as technology becomes more accessible, the onus on individuals to understand and mitigate risks associated with powerful tools grows exponentially.

Beyond the Hobbyist Bench: Niche Applications?

While the immediate application of a DIY X-ray machine is limited to personal exploration and education, the underlying principles could, under extremely strict regulatory and safety frameworks, hint at future niche applications for compact, low-power X-ray sources. These might include specialized non-destructive testing for very small components, quality control in specific micro-manufacturing processes, or highly controlled educational demonstrations in advanced physics labs where professional shielding and safety measures are already in place. However, the path from a hobbyist bench to a regulated industrial or scientific tool is long, arduous, and paved with extensive safety certifications and rigorous testing, ensuring that the benefits far outweigh any residual risks.
